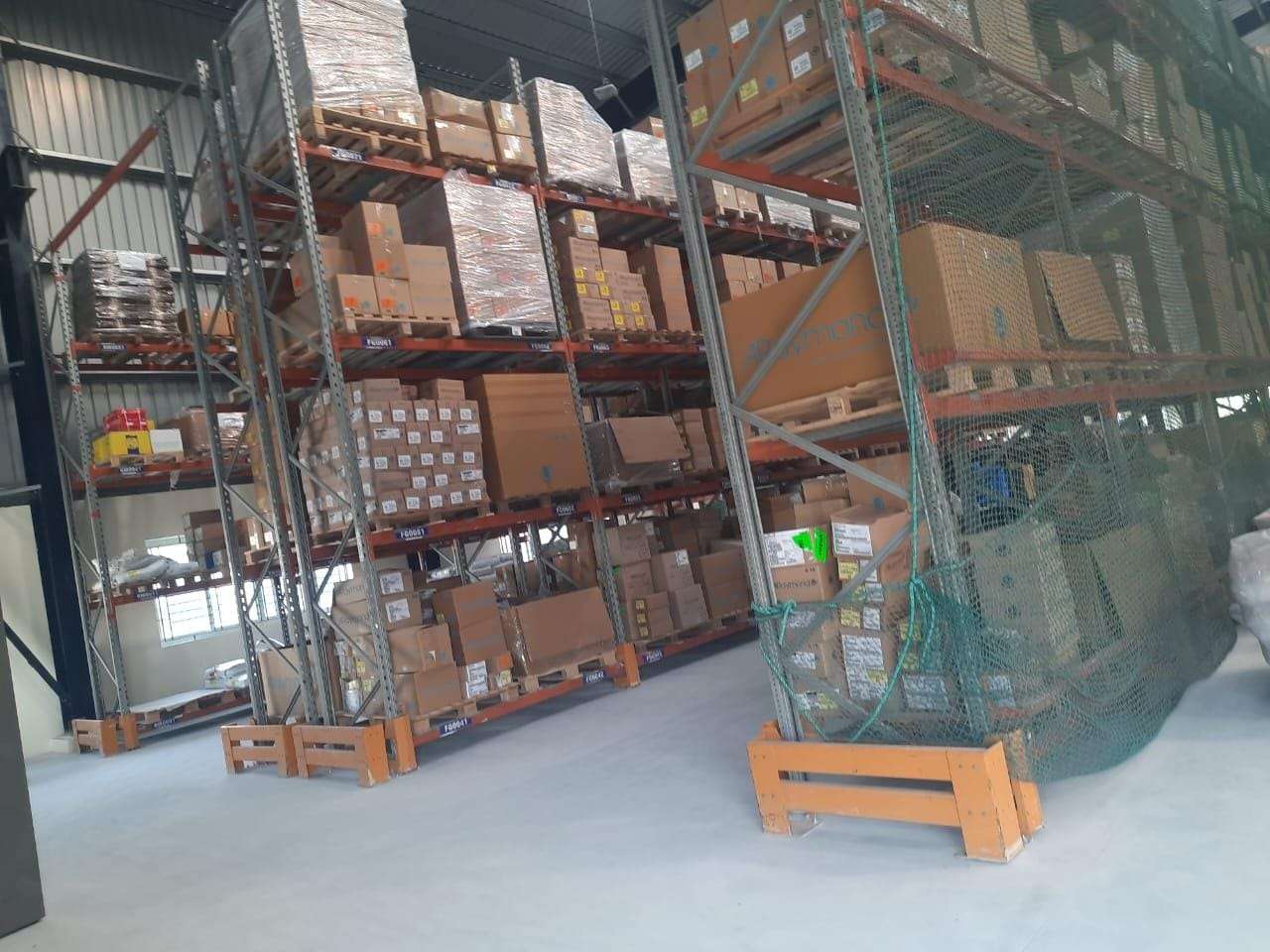

Racking - Solution
-
Maini Buggy Best in Campus Transporation

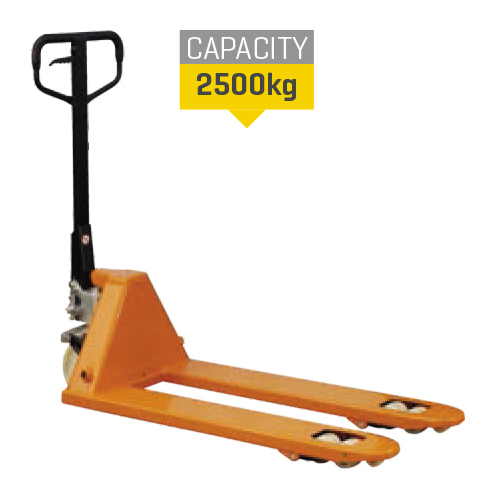

PV25
Standard Version
Fork length - 810/910/1150/1220mm
Fork width - 520/685mm
Light weight & highly maneuverable

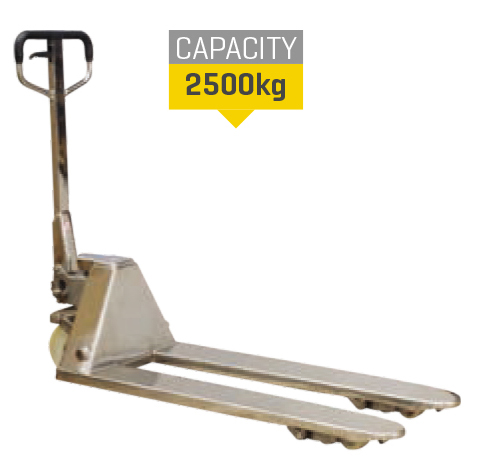

PV25 G/SS
Galvanised / Stainless Steel
For use in damp and corrosive environments. Ideal for chemical, paper, leather, food processing industries and cold storage.

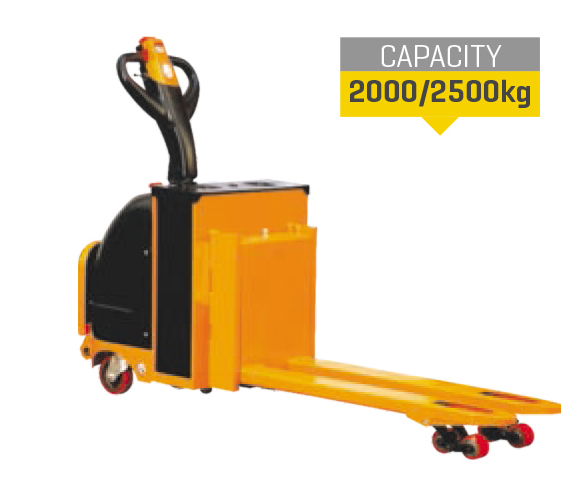

SP20 / SP25
Ideal for high intensity movement over long distances. Increased manoeuvrability because of small turning radius. Offers high throughput in both factories & warehouses.

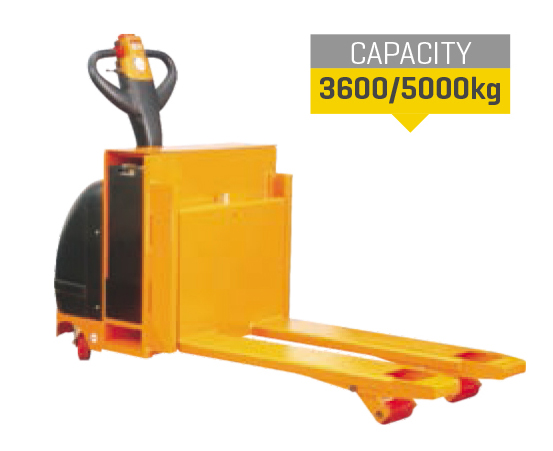

SP36 / SP50
Ideal for carrying heavy palletized load like Castings, Metal Coils, Engines. Best suited for heavy engineering industries.

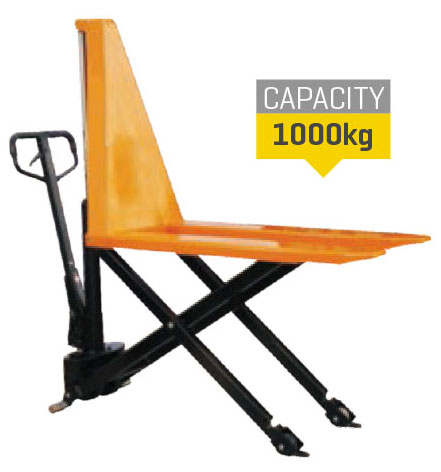

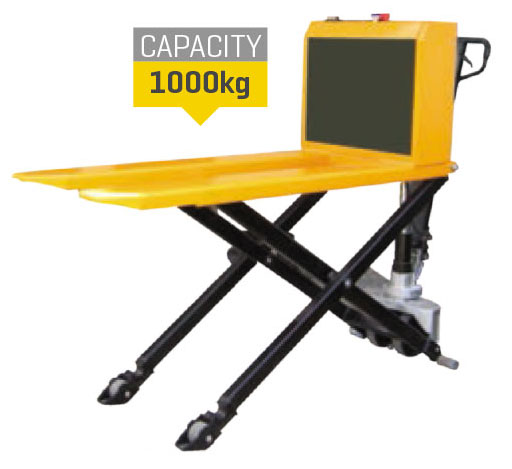

SHP10
Lift height: up to 800mm
Combines advantages of hand pallet truck and adjustable worktable. Available in both quick lift & battery operated versions.
SHP10 B
Lift height: up to 810mm
Combines advantages of hand pallet truck and adjustable worktable. Available in both quick lift & battery operated versions.
EPT5/7.5
Ideal for transporting non standard, non palletized loads in stores and warehouses. Also used as an order picker.

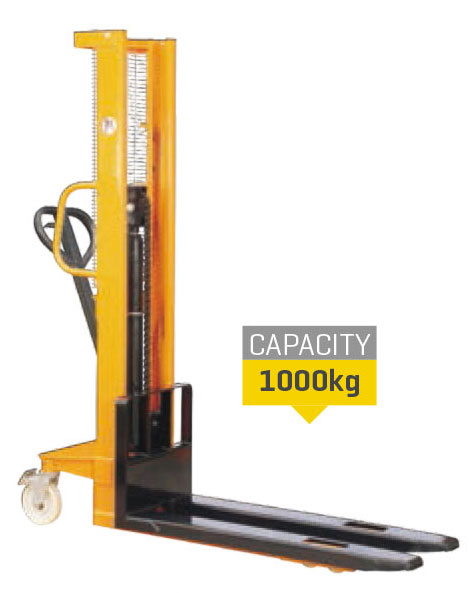

MS10
Lift height: up to 2450mm
Suitable for in-plant operations where lifting is primary and transport distance is short.

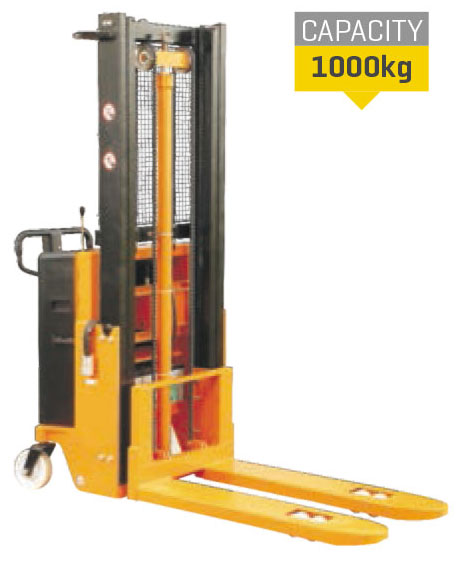

MS10 B
Lift height: up to 3100mm
Powered with electric lift, essentially used where applications require intensive stacking.

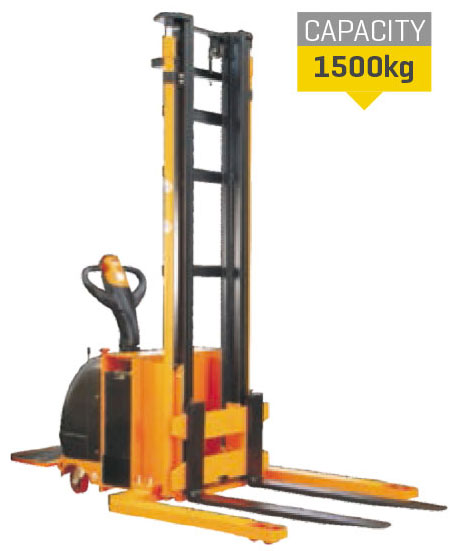

SC18/SC14
Lift height: up to 4200mm
A perfect fork lift & stacker combination. Ideal for ONE VEHICLE DOES IT ALL operations.
Versatile, useful in almost all industrial work environments. Its compact design and small turning radius makes it ideal for operation in narrow aisles and busy gangways. Essentially an in-plant equipment, it is used for intensive stacking and transportation in minimum cycle times.

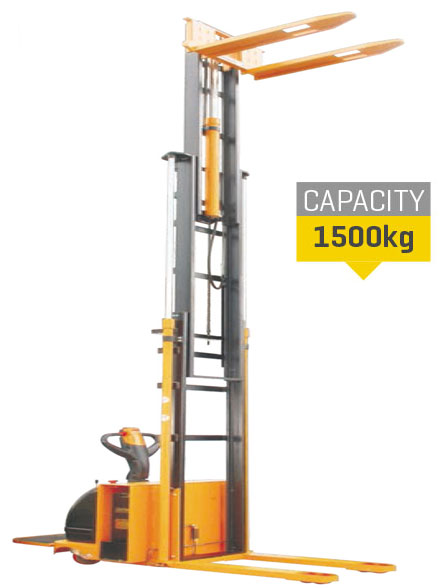

ST15 WC(Wide Chassis)
Lift height: up to 6300mm

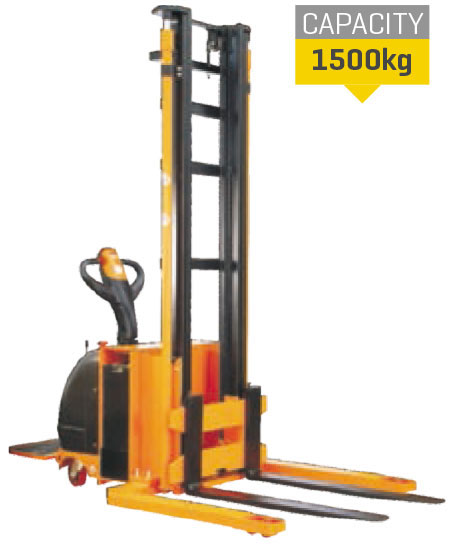

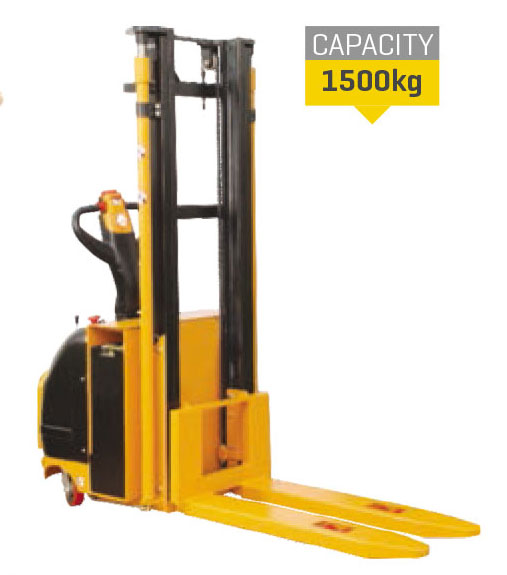

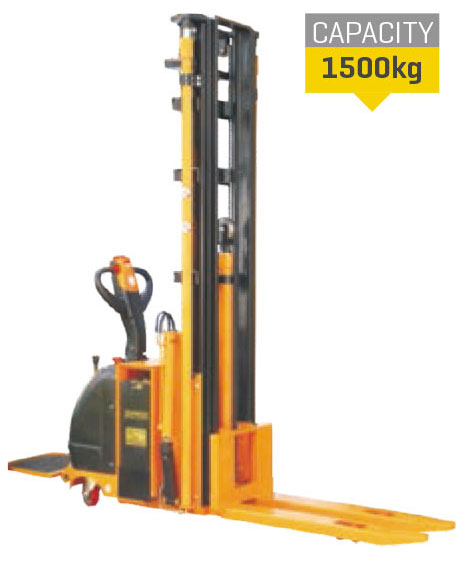

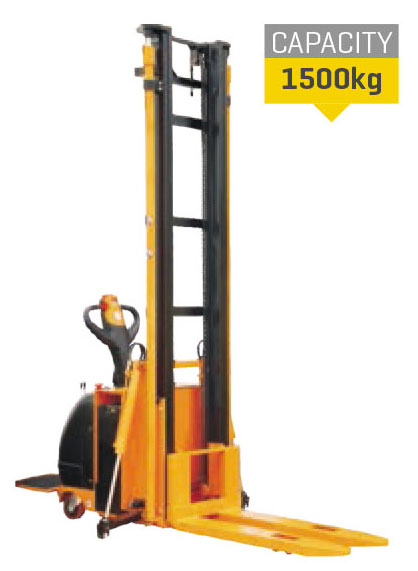

ST15 [Standard]
Lift height: up to 4200mm
ST15 SS
Lift height: up to 4800mm.
ST15 W
Lift height: up to 6300mm.
ST15 SS FFTL
Lift height: up to 6300mm.

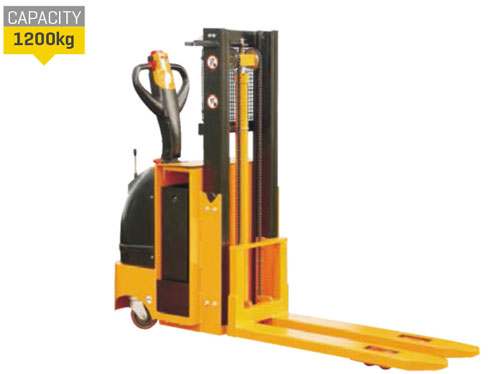

ST12
Ideal for intensive use and multishift operations as lateral movement is easier and quicker.
Lift height: Up to 4200mm

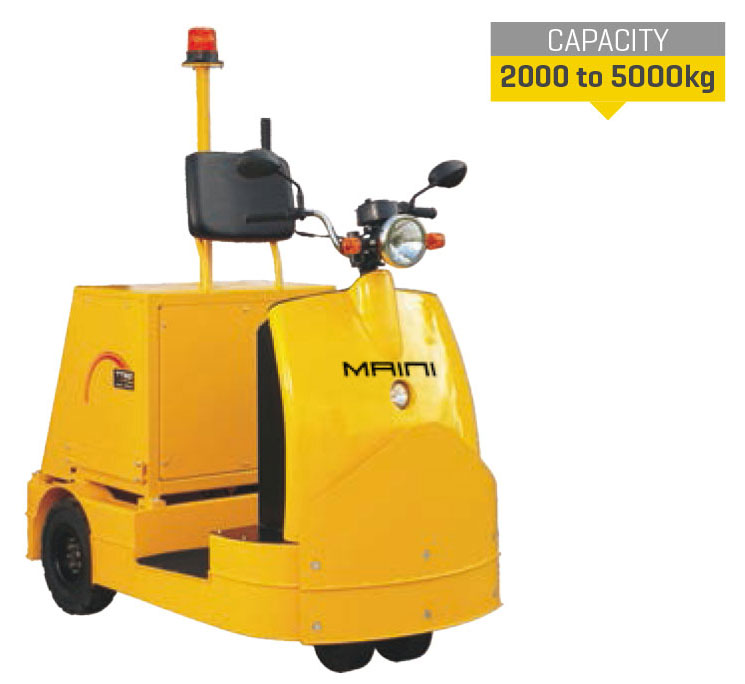

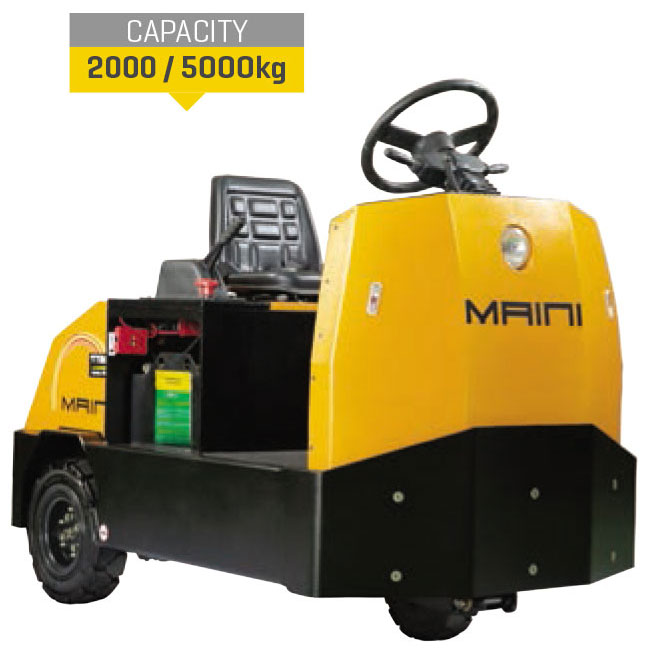

TT20 / TT50
Ideal for towing within factories, warehouses and at airports. The new electric power steering coupled with small turning radius makes it ideal for operating in narrow aisles. Available in sit-on and stand-up versions.
TT20s / TT5os
Ideal for towing within factories, warehouses and at airports. The new electric power steering coupled with small turning radius makes it ideal for operating in narrow aisles. Available in sit-on and stand-up versions.

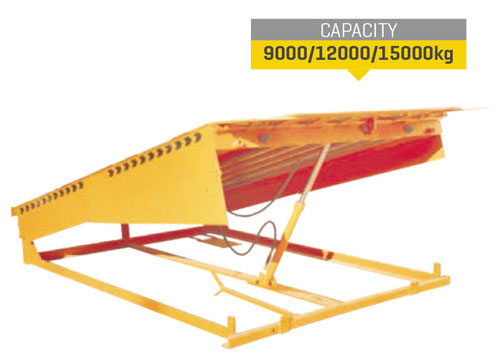

Dock Levellers
Ideal for loading / unloading applications at diverse industrial, retail and commercial establishments.
Lift Tables
Ideal for loading / unloading from trucks and containers. Applications at Press Shop, Packaging & Assembly Area.

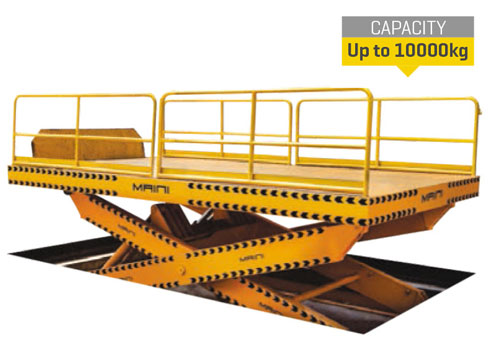

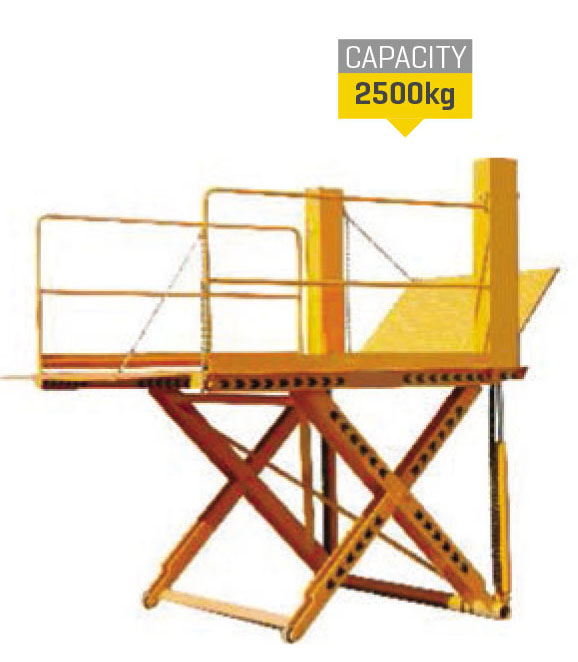

Scissor Lifts
Lift height: up to 3000mm
Ideal for loading / unloading applications at diverse industrial, retail and commercial establishments.
.jpg)
Techincal Features
» Integrated digital display
» Inching facility at rear
» Auto distilled water filler unit
Safety Features
» Dead mans pedal & seat sensor
» Dual charging port
Safety Features
» Auto parking system
» Dead man pedal
» Emergency stop
» Low level battery warning
» Flash light
» Reverse buzzer

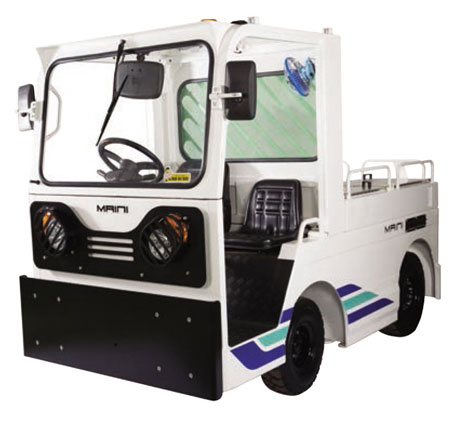

15000 kg & 25000 kg towing capacity tugs for
» Heavy Engineering Industries
» Airports
» Defence
» Shipyards

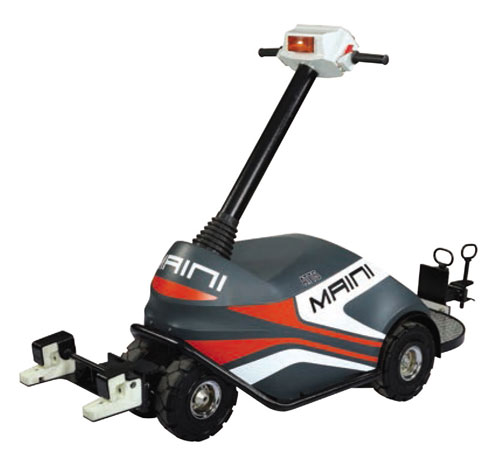

Ideal for
» Terminal baggage trolley at airports
» Security runs in large campuses
» Pickups at large warehouses
» Light towing applications for industries
Ergonomic Features
» Wide platform for operator
» Clear visibility
» Stable drive
Display Features
» Battery discharge indicator
» LED’s for forward, neutral & reverse
Safety Features
» Auto parking system
» Dead man pedal
» Emergency stop
» Low level battery warning
» Flash light
» Reverse buzzer

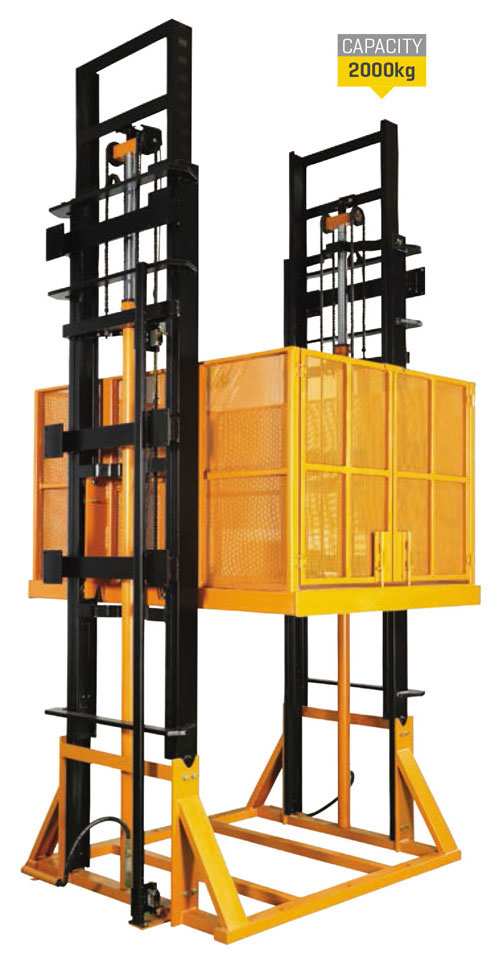

Without Enclosure
Lift height: up to 8000mm
deal for vertical transportation of palletized and non-palletized goods in multi level warehouses and industries. Designed specifically for the purpose of moving freight and goods, these lifts are completely customizable and come with different variants of floor, wall surfaces and many other features.

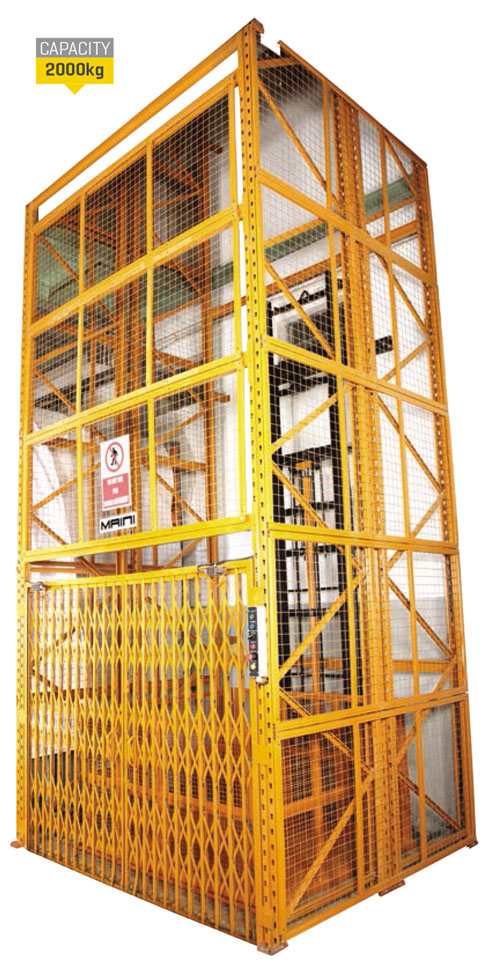

With Enclosure
Lift height: up to 8000mm
deal for vertical transportation of palletized and non-palletized goods in multi level warehouses and industries. Designed specifically for the purpose of moving freight and goods, these lifts are completely customizable and come with different variants of floor, wall surfaces and many other features.
Features
» Swing door with interlocking on carriage
» Perforated sheet on all the 4 sides
» Hose burst check valve for added safety
» Pendant with emergency switch on all the floors
» Limit switch cutoff on all the floors
» Mechanical Interlock forCollapsible Gate
» Electromechanical Lock
» Electromagnetic Lock
Safety Features
» Swing door with interlocking on carriage
» Perforated sheet on all the 4 sides
» Hose burst check valve
» Pendant with emergency switch on all the floors
» Limit switch cut off on all the floors
» Emergency alarm
» Single phase protection
» Phase failure protection
» Reverse phase protection
OptionaL Features
» Interlocking collapsible gate on carriage
» SS 304 complete carriage
» Closed Carriage / Cabin Option
» Flame proof control panel & power pack
» PLC control panel
» Beacon & beeper
» Enclosure interlocking type
» Mechanical lock
» Electromechanical
» Electromagnetic
» Overload indicator
» Fault Indicator in control panel
» Emergency push button with in-built LOTO (Lock out tag out)
» Floor indicator on control panel
» Enclosure with perforated sheet

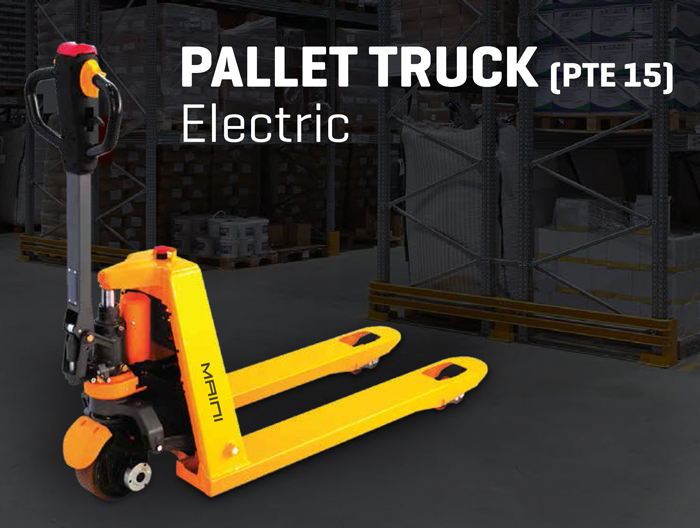

Salient Features
» Lithium battery capacity: 24V/20AH
» Multi-function handle with built-in operating switch
» Easy access emergency switch
» Split rocker arm design to increase life of Pallet truck
» Horizontal mounted motor make it easier to service
» External battery charger connector for easy charging
» Nose wheel for easy entry & exit
Advantages
» Li-ion powered Pallet Truck similar to manual Pallet Truck
» Can be operated in small aisles
» Light Structured & easy to operate
» Removable balance wheel for easy maintenance
» Improved strength with rock arm mechanism as an integral structure.
Product Specifications
| Model | Specifications | PTE 15 |
| Load Capacity | Q (kg) | 1500 |
| Load Center Distance | C (mm) | 600 |
| Fork Height, Lowered | h13 (mm) | 80 |
| Tyre Size, Front | mm | Φ210×70 |
| Tyre Size, Rear | mm | Φ80×93 / Φ80x70 |
| Max. Lifting Height | h3 (mm) | 110 |
| Height of handle in drive position min./max. | h14 (mm) | 635/1200 |
| Overall length | l1 (mm) | 1580 |
| Length to face of forks | l2 (mm) | 430 |
| Overall width | b1 (mm) | 550 |
| Fork Dimensions | s/e/l (mm) | 53/160/1150 |
| Width Overall Forks | b5 (mm) | 550/685 |
| Aisle width for pallets 1000×1200 crossways | Ast (mm) | 2180/2250 |
| Aisle width for pallets 800×1200 lengthways | Ast (mm) | 2050/2085 |
| Turning radius | Wa (mm) | 1380/1450 |
| Travel speed, laden/unladen | Km/h | 4.3/4.5 |
| Battery voltage, nominal capacity K20 | V/Ah | 24/20 |
| Battery Weight | Kg | 5.5 |
| Service weight(with battery) | kg | 114 |
